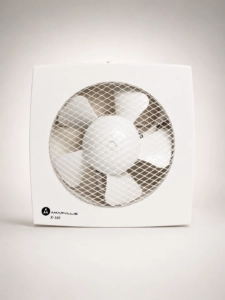

Series-X Exhaust Fan

Series-X | High-Capacity Airflow for Bigger Spaces

Large-volume extraction | Safety grille | Strong wall and glass ventilation

From ₹ 3,190

Select Size

X-160 X-190 X-225 X-300

Select Color

Product Highlights

Safety grille front panel provides protection around the blades.
Designed for glass and wall installation.
Suitable for rooms, offices, kitchens and other active spaces.
Low-noise operation supports regular use.
Gravity shutter helps manage reverse airflow.
Fully copper-wound motor supports reliable performance.

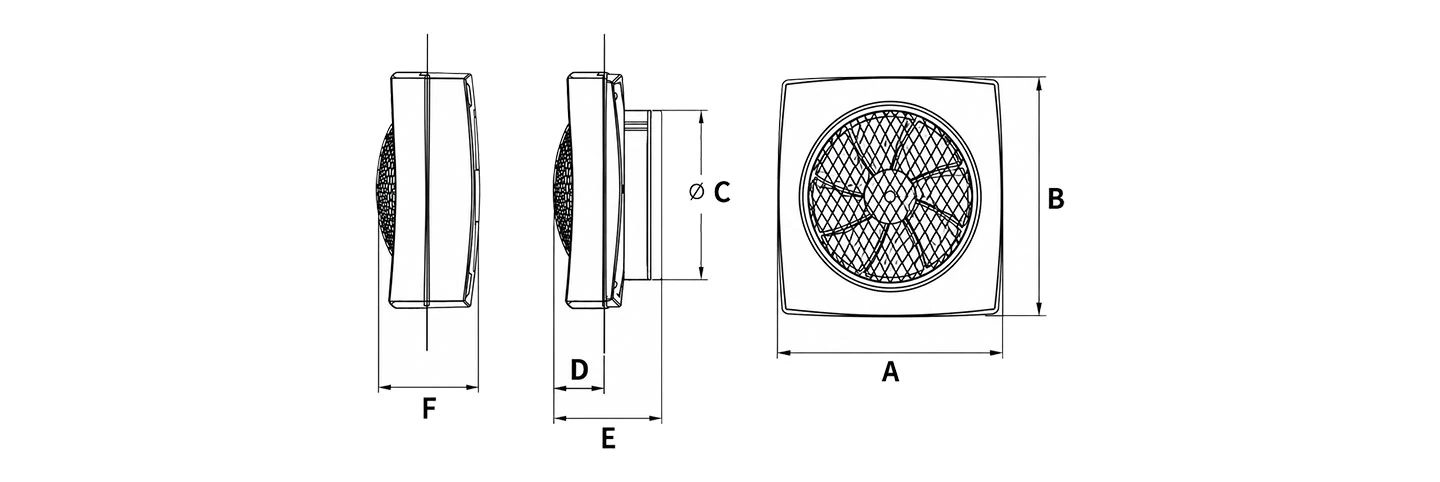

Series-X Exhaust Fan dimension diagram

Specification

Technical Specifications

Model	A	B	C	D	E	F	Volts/Hz	Watts	Air-Flow (m³/hr)	Noise Level(db) @3M
X-160	210	210	160	46	89	99	220-240/50	25	450	40
X-190	250	250	194	54	97	109	220-240/50	30	700	42
X-225	285	285	229	61	110	123	220-240/50	45	900	44
X-300	370	370	315	77	125	144	220-240/50	50	1450	47

Cutting Size (Round)

Model	Wall	Glass
X-160	165mm	186mm
X-190	195mm	225mm
X-225	230mm	270mm
X-300	315 mm	340mm
